E28 Series
Reliability Above All
Always On: No Interruptions
• 24/7 Reliability: Designed for non-stop operation in demanding outdoor environments. Ensures your message is always on air, protecting your advertising revenue.
• Dual Redundancy: Backup systems for both power and signal prevent single points of failure. Independently powered receiver cards maintain signal and control communication during power issues.
Reliability Above All
Security, Backed by Our Hard Connection Patent
QSTECH's patented Hard Connection ensures a seamless, precision interface for superior strength and electrical reliability. Engineered to withstand vibration, extreme temperatures, and harsh outdoor conditions, it guarantees long-term stability and dramatically lowers maintenance costs.

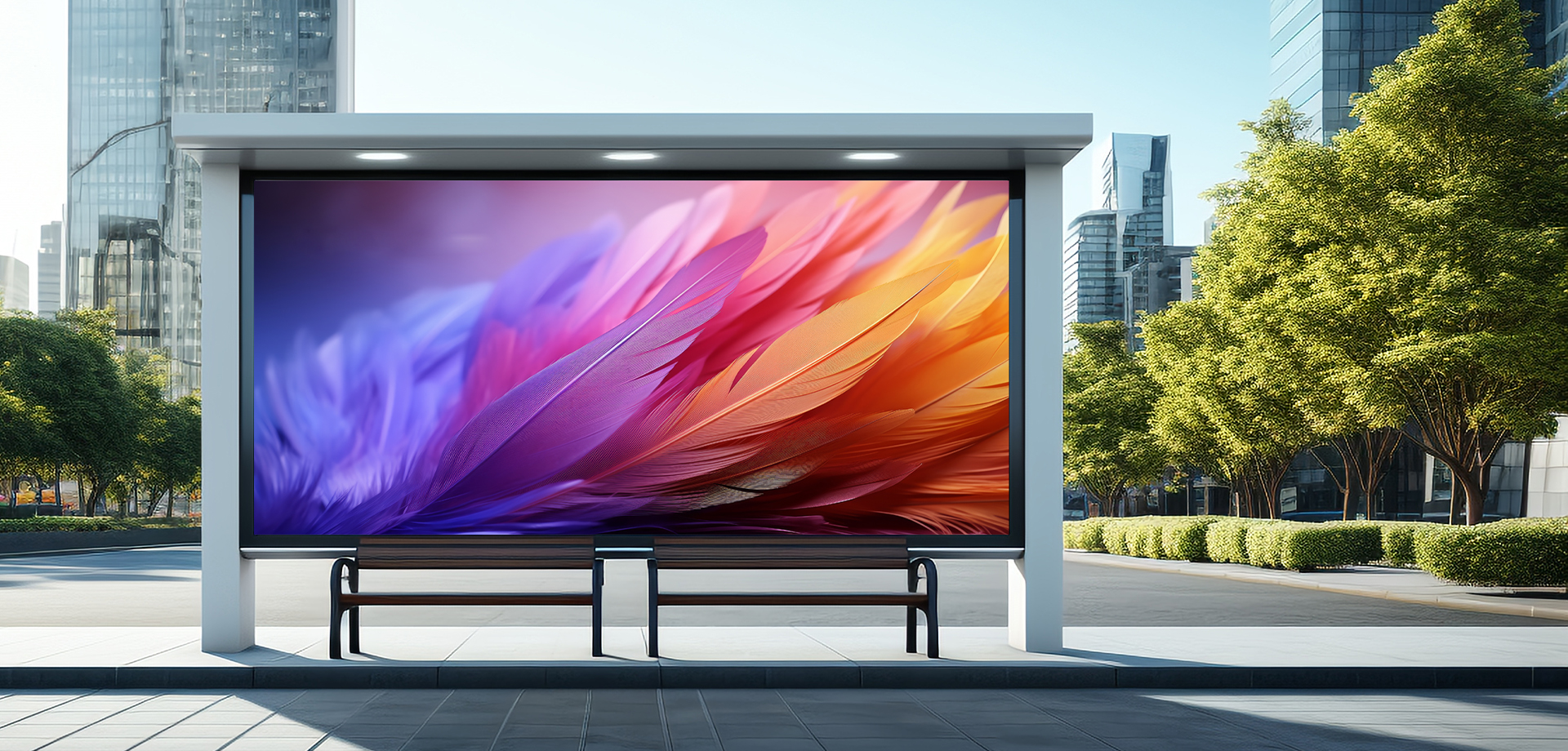

DOOH, Ultimate Clarity
Defies the Sun, Reveals Every Detail
・Max Brightness (7000nit): Crushes glare, full clarity at noon.
・True Color (18bit+): Billion-shade palette, smooth gradients.
・Smooth Motion (High Hz): Zero blur, zero lag, just flow.
Operational Efficiency, Redefined
Half the Power, Near-Zero Standby
Performance, Proven In The Elements
IP66. Unbreakable Defense
The fully-sealed structure achieves an IP66 rating, offering total resistance against rain and dust. It withstands torrential rains, sandstorms, and other harsh conditions, ensuring long-term reliable performance outdoors.
Operational Command
Remote Monitoring & Smart Alerts
• Maximum Efficiency: Minimizes downtime and operational costs.
• Real-Time Monitoring: Built-in sensors track temperature, voltage, and signal.
• Remote Management: Access data and resolve issues from anywhere.
Command Your Operations
5-Second Swap. Total Control
Efficiency Redefined: Quick, simple, and reliable.
Swap Power in 5s: Minimize downtime, maximize uptime.

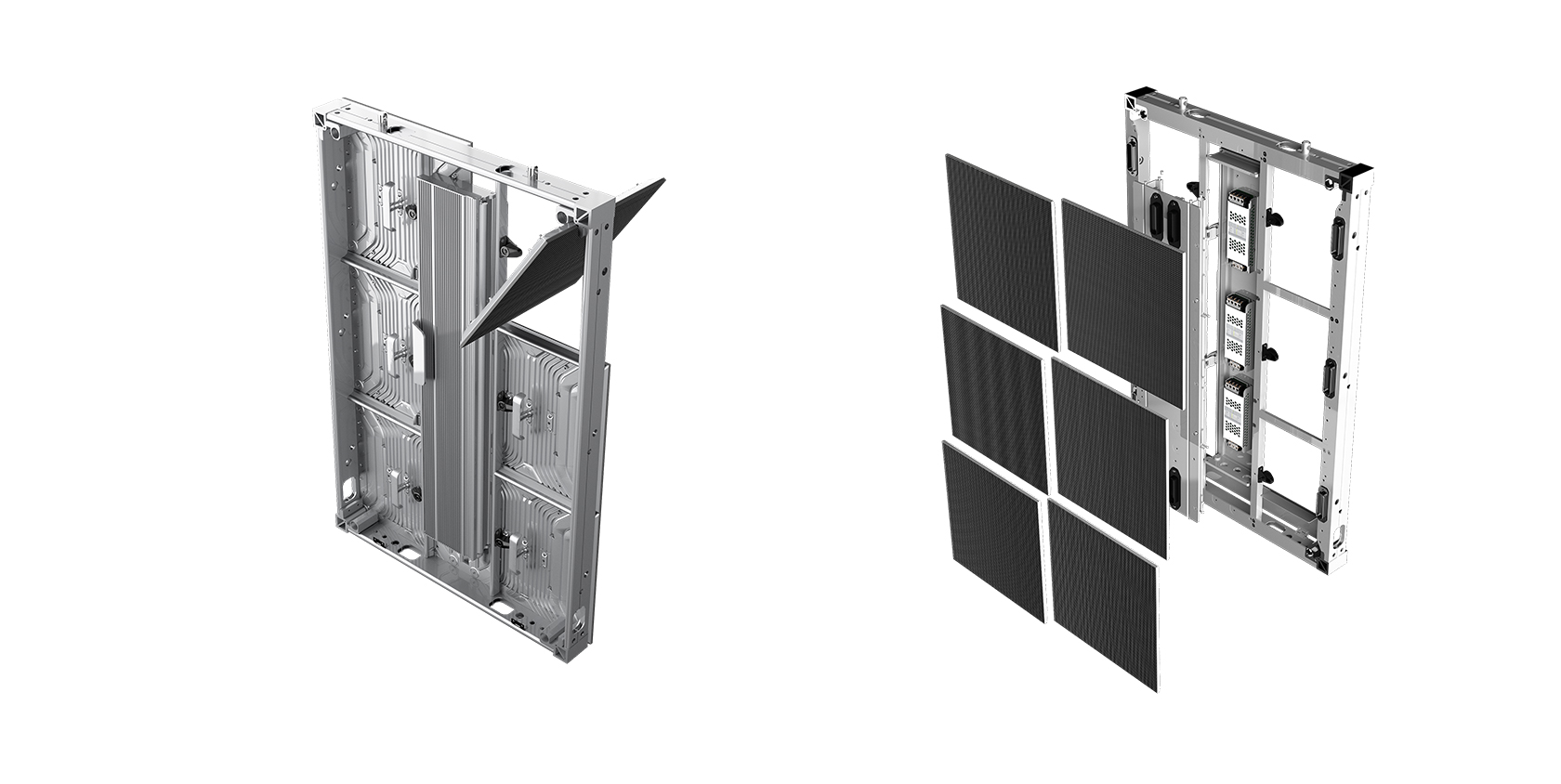

Dual-Side Access: Fits any installation, easy to service.
Unified Structure. Seamless By Design
Ultra-Slim, Perfectly Integrated

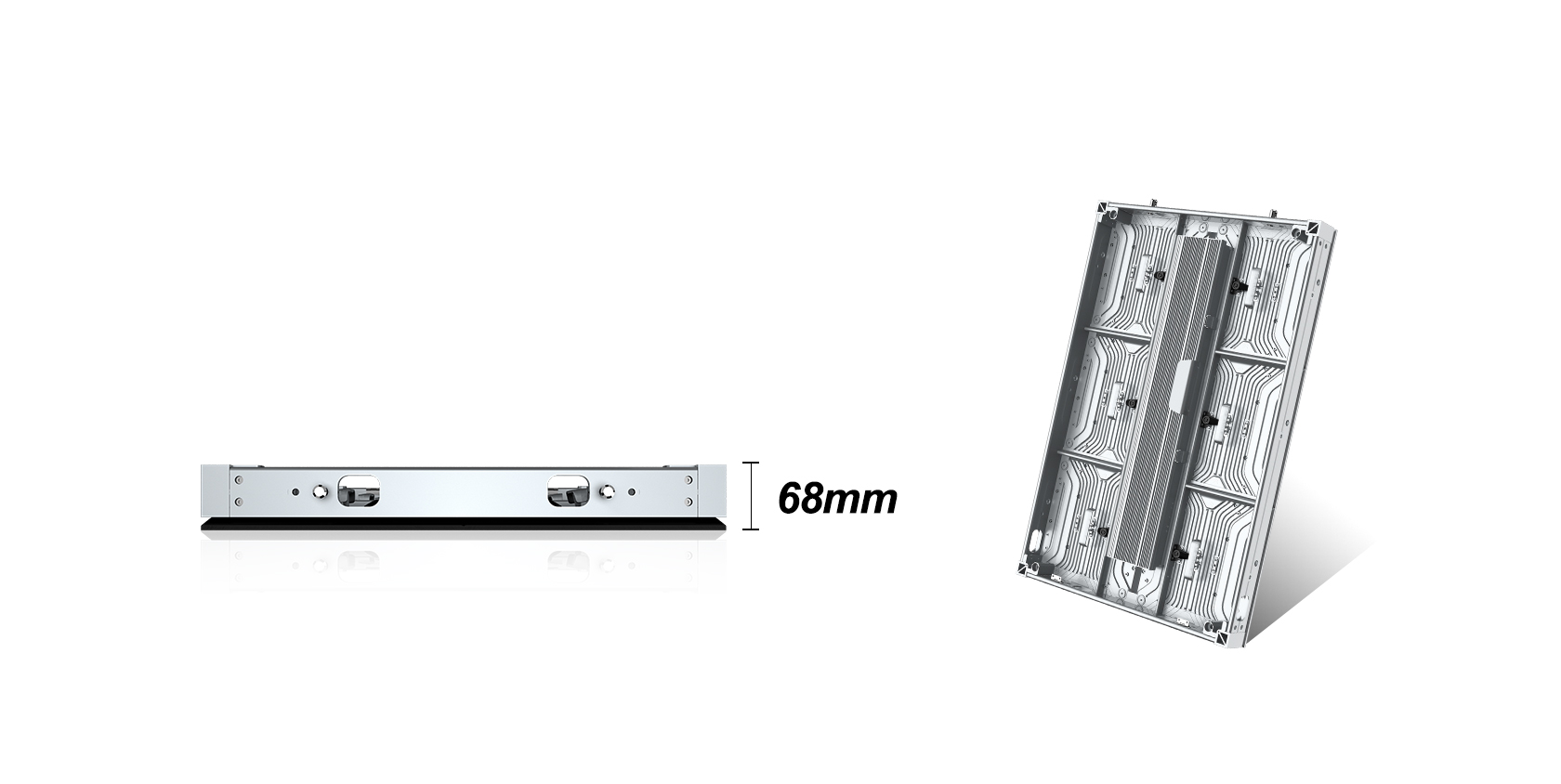

The 68mm ultra-thin die-cast aluminum cabinet ensures structural integrity while reducing weight and simplifying installation. The die-cast back panel provides excellent flatness and thermal efficiency, offering both performance and aesthetics for seamless integration into any setting.
-
Rear -
Side -
Module
Adaptive Sizing, Total Freedom
Multiple Sizes, Limitless Configurations
Three cabinet sizes: 1000×1000mm, 500×1000mm, and 500×500mm. Precision 45° angled edges enable seamless 90° corner transitions, allowing flexible configurations to meet diverse outdoor advertising project requirements.
Specifications
| Physical Parameters | DE2829 | DE2829 |
| Pixel Pitch | 2.9mm | 3.9mm |
| Cabinet Size(W x H x D) | 500 × 500/750/1000 × 68mm | 500 × 500/750/1000 × 68mm |
| Cabinet Weight | 8.7/12.5/16kg | 8.7/12.5/16kg |
| Optical Parameters | ||
| Brightness(nits = cd/m²) | 5500 | 7000 |
| Refresh Rate(Hz) | 3840 | 3840 |
| Contrast | 10000:1 | 10000:1 |
| Other Parameters | ||
| Maintenance | Front & Rear Access | Front & Rear Access |
| Protection Level | IP66 | IP66 |
All the data are from CVTE lab. The data above are subject to change without prior notice.
